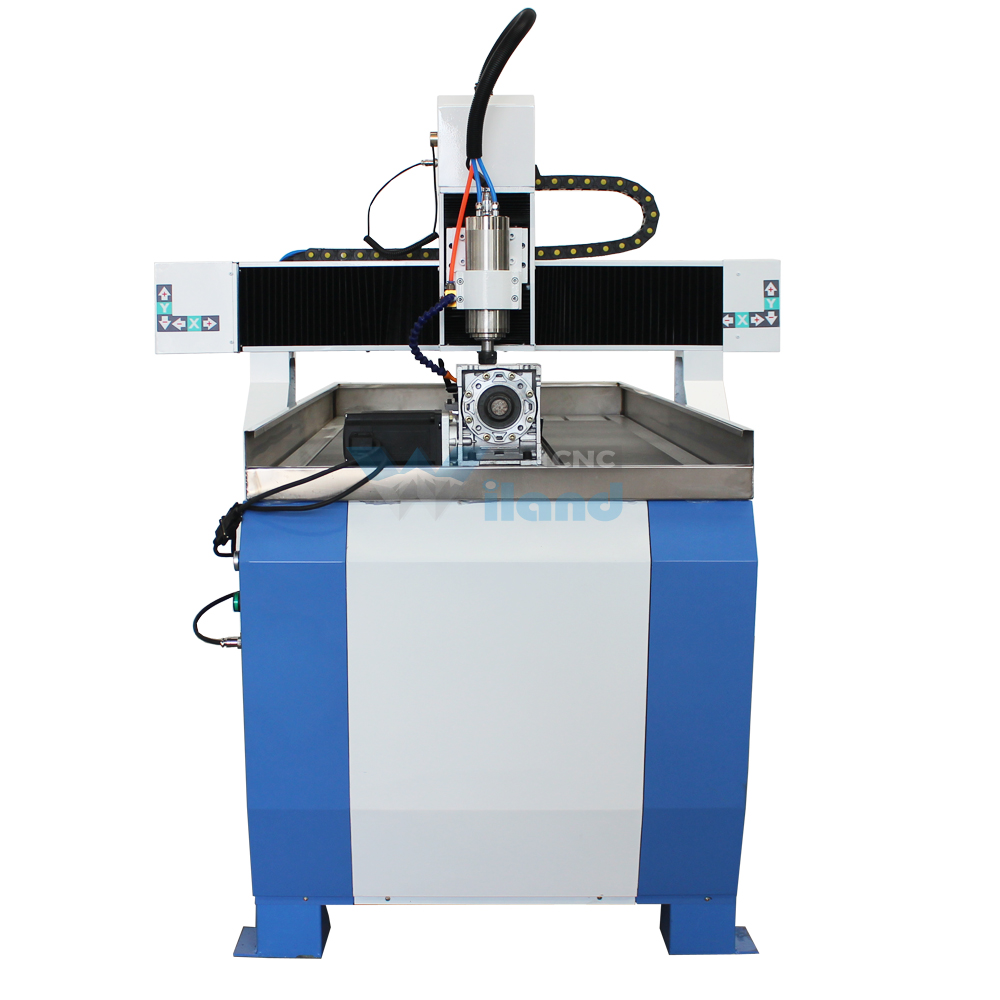

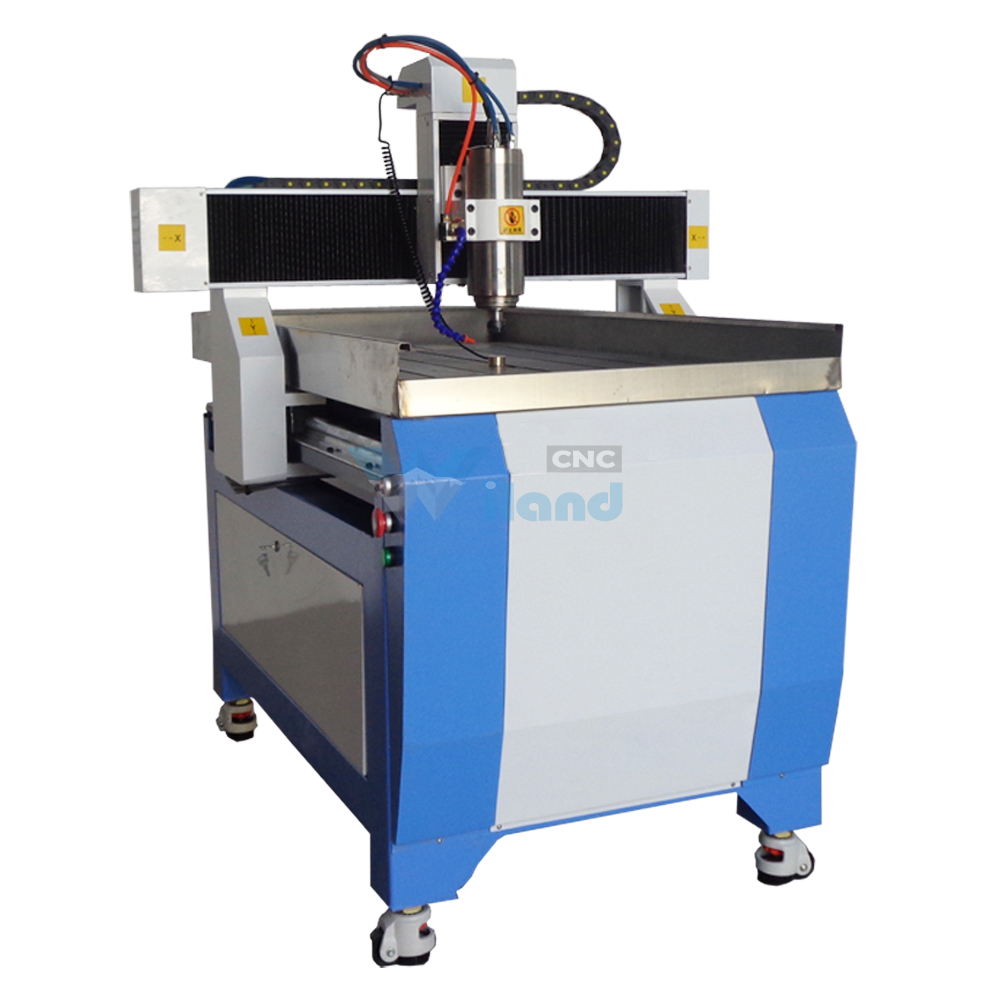

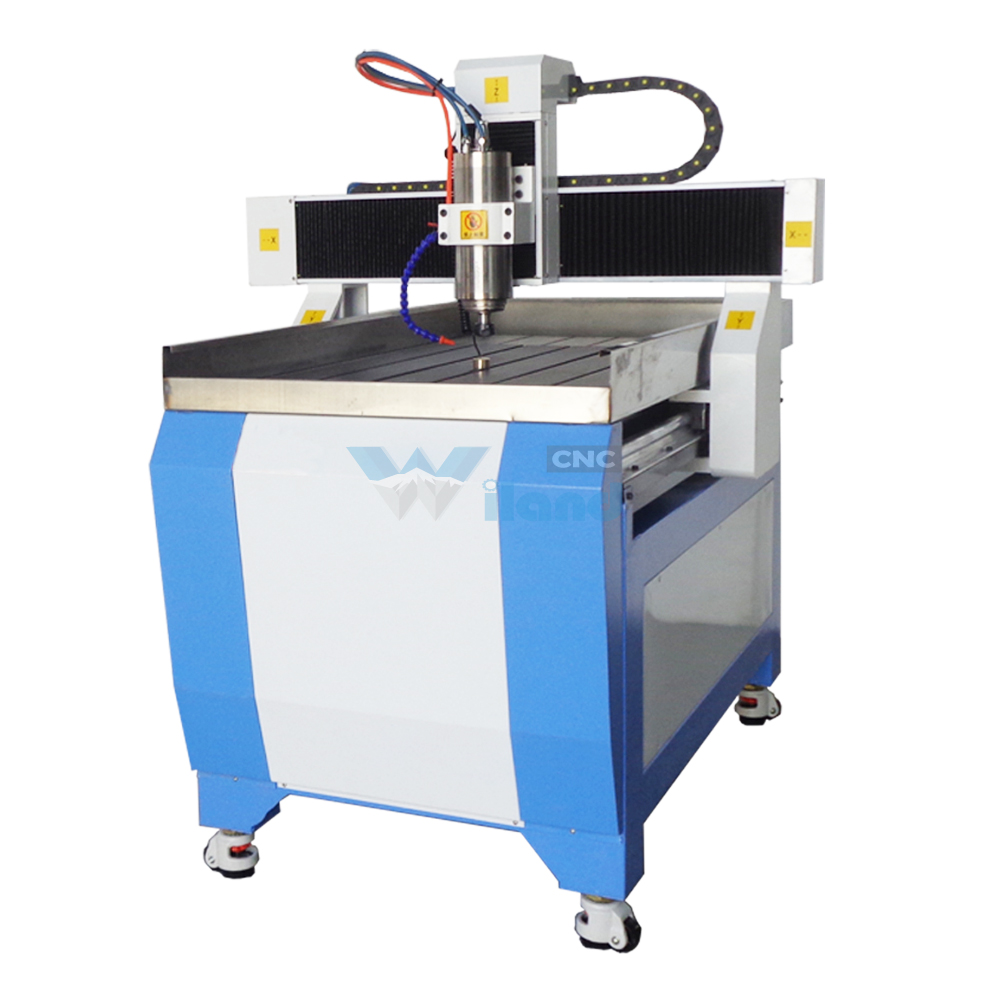

Model: WLD-4040/6060/6090/6012
Power: 1.5Kw/2.2Kw/3.2Kw
Spindle :Water Cooling/Air Cooling
Collet: ER20
Control System : NCStudio/DSP/Mach3
Working Table : Stainless Steel Water Slot
Motor: Stepper/Servo
CONTACT
Applicable Industries
Suitable for metal,stone materials , tombstone processing , artistic relief ,advertising & decoration , artware industry , etc .
Applicable Materials
Metal ,Marble , granite , blue stone , sand stone , tile , glass , crystal , artificial stone , tombstone , mile stone , jade,etc, also can for the woodworking materials , metal , advertising materials
| Working Size | 600*1200*200mm (XYZ) | |||
| Materials | Welded steel pipe machine holder and machine bed , cast iron vertical shafts and transom | |||

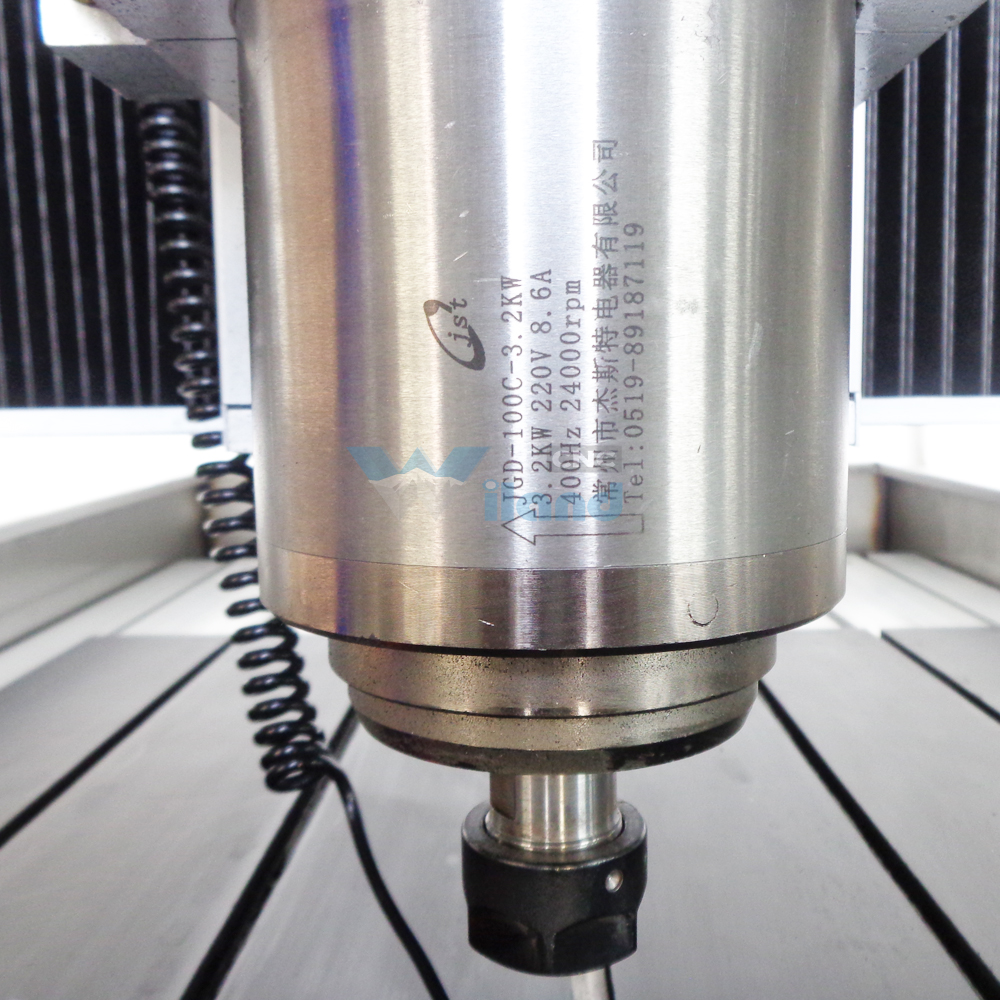

| Spindle Power | 3.2KW Water Cooling , 24000RPM | |||
| Collet Type | ER20 | |||
| Suitable Tools Diameter | 3.175mm,4mm,6mm,8mm,10mm,12.7mm | |||

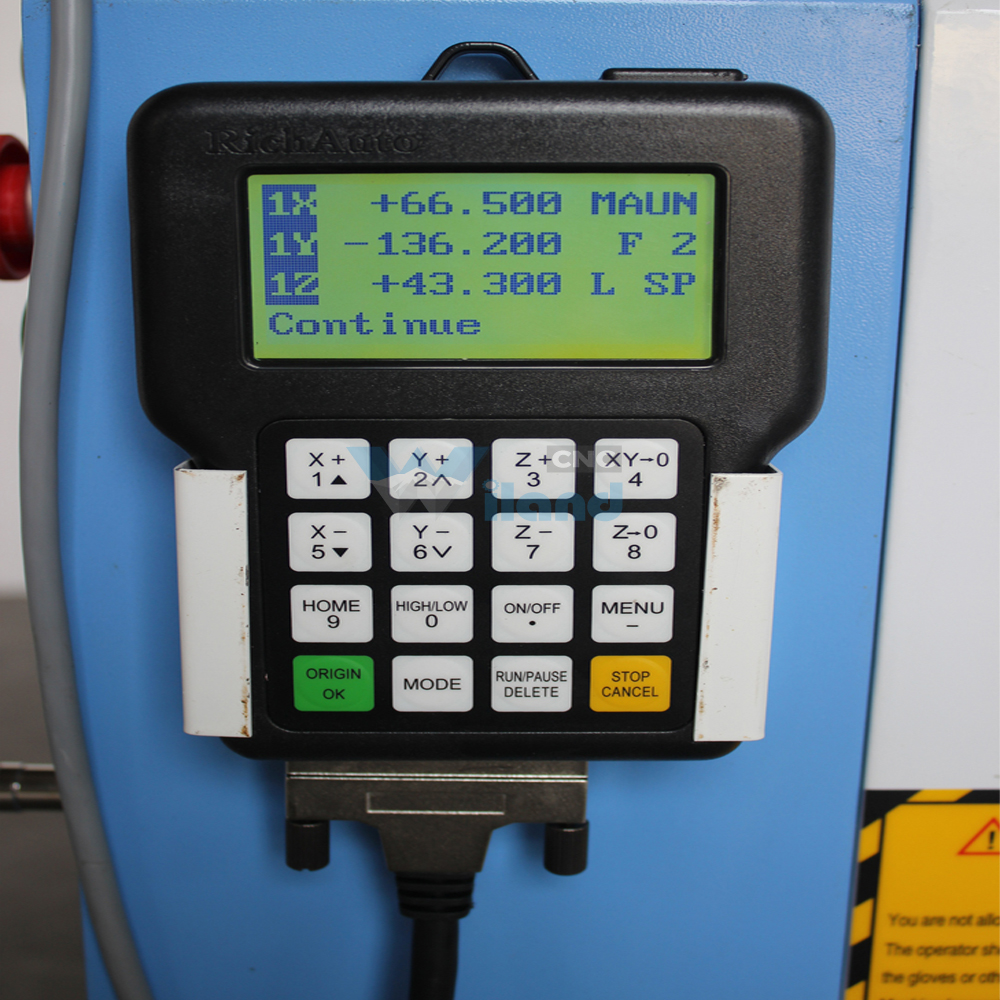

| Control System | DSP/Mach3/NCStudio | |||
| Working Table | Aircraft Aluminum T Slot Table | |||
| Water Cooling System | Stainless Steel Water Slot | |||
| Moving Type | Gantry Moving | |||
| Water Proof & Dust Proof System | XYZ Axis | |||
| Moving Type | Gantry Moving | |||

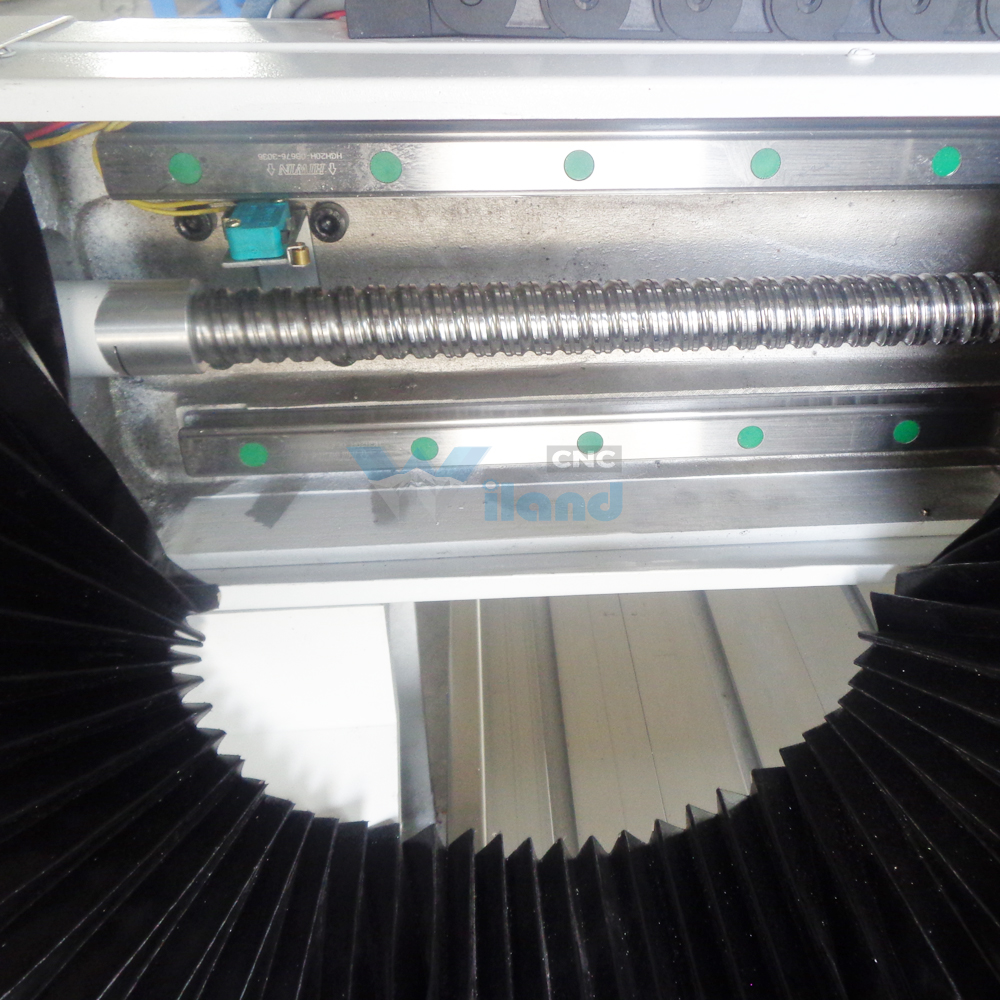

| Guide Rail | Linear Square Guide Rail ( Hiwin ,Taiwan) | |||
| Transmission | Ballscrew for XYZ axis | |||
| Driving Mode | Stepper Motor | |||
| Voltage | AC220V 50/60Hz ,1 Phase | |||
| Empty Traveling Speed | 0-18000mm/min | |||
| Engraving Speed | 0-9000mm/min | |||
| Machine Accuracy | 0.03mm | |||
| Resetting Accuracy | 0.05mm | |||
| Diagonal Error | 0.5mm | |||
| Control System | DSP/Mach3/NCStudio | |||
| Carving Instructions | G code * U00*mmg*plt*HPGL | |||
| Design Software | Ucancam/ArtCAM/JDPaint/TYPE3 | |||
| Optional Items | DSP/Mach3/Original NCStudio control system, air cooling spindle, dust collector , auto oiling system , computer cabinet , rotary axis , wireless handwheel , servo motor , etc | |||
